Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

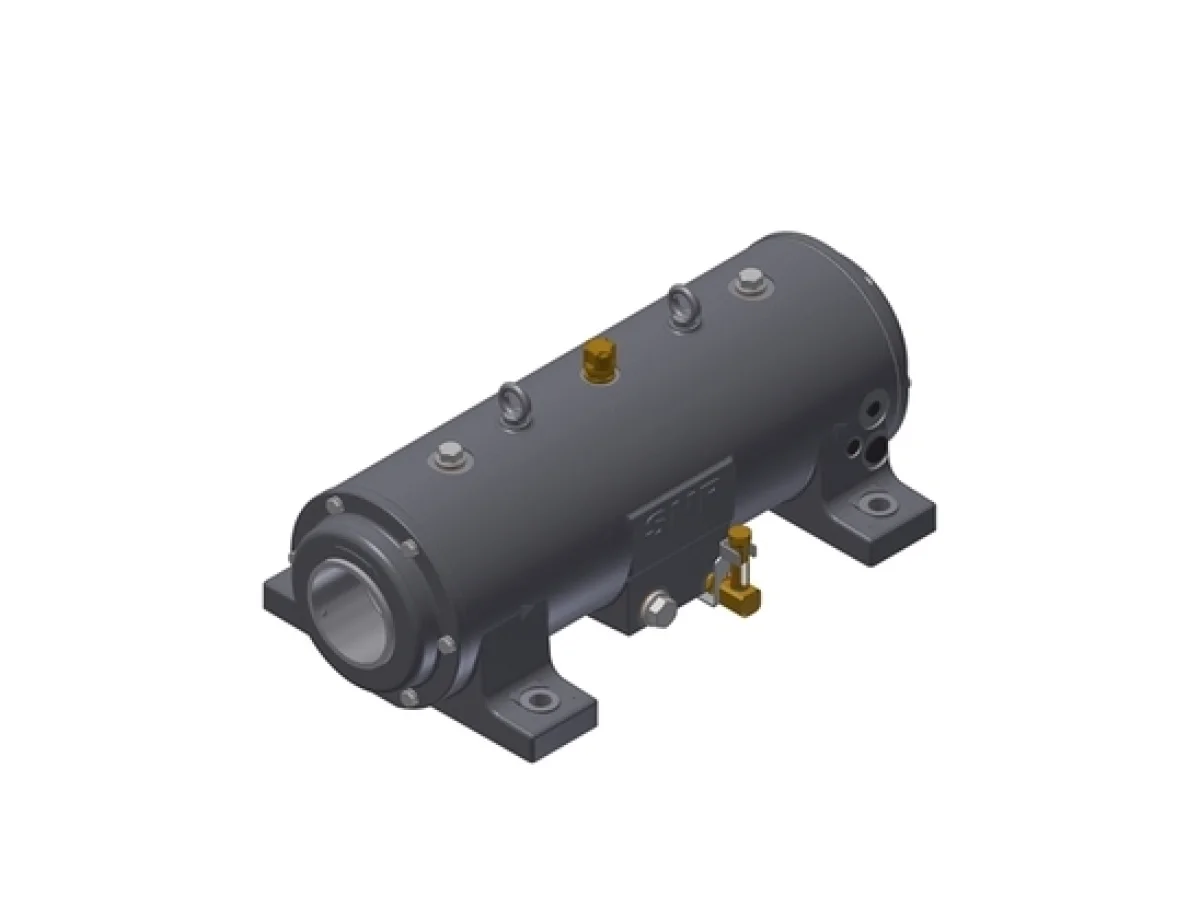

Multiple bearing housings, that allow the usage of different bearing combinations.
ZLOE 220/1 B specifications

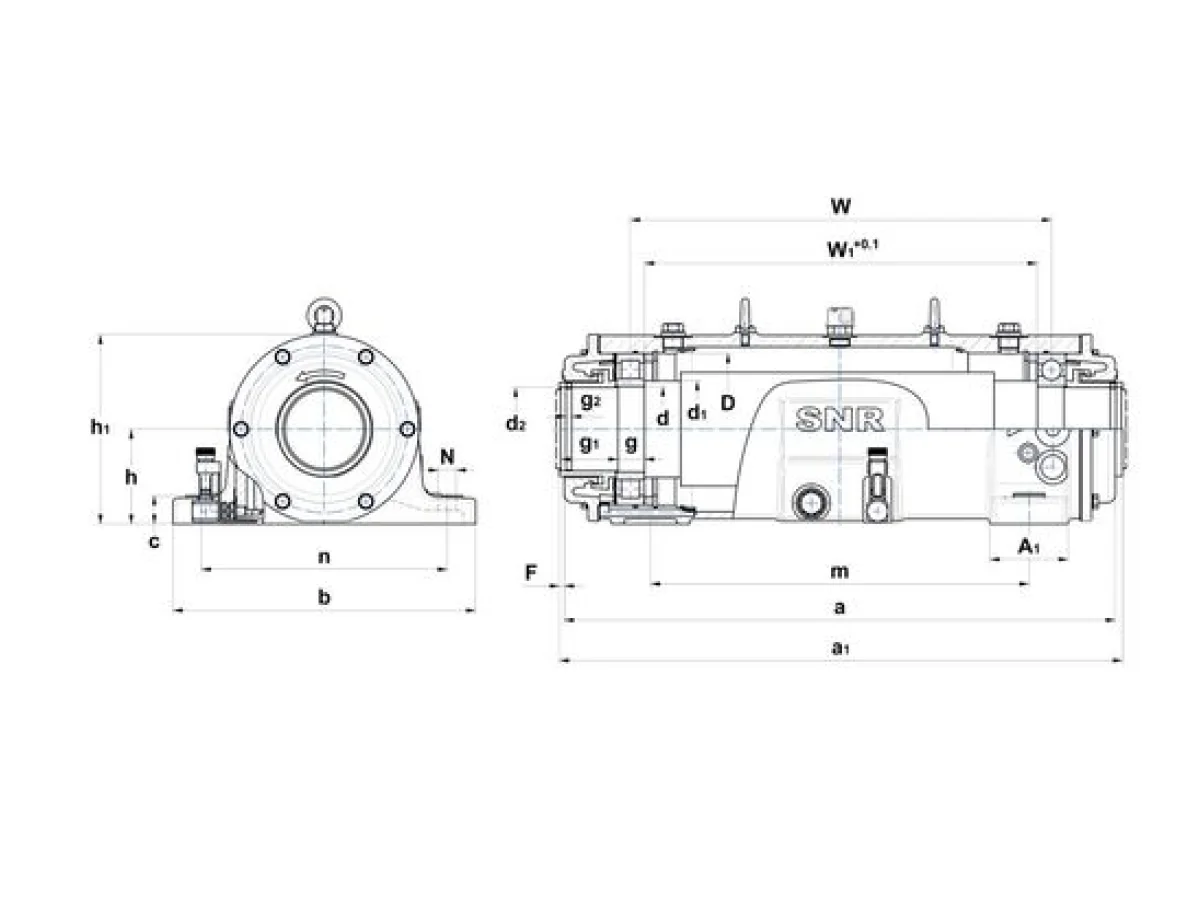

PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 100 mm
- d1 - Shaft diameter between bearings
- 115 mm
- d2 - Shaft diameter outlet small
- 98 mm
- a - Housing length
- 645 mm
- a1 - Total length over lab
- 657,5 mm
- b - Housing foot width
- 350 mm
- c - Housing foot height
- 30 mm
- g - Shaft step 1 length
- 32 mm
- g1 - Shaft step 2 length
- 58 mm
- g2 - Shaft groove lab fixing
- 6 mm
- h - Bearing center height
- 112 mm
- h1 - Housing height
- 227 mm
- m - Mounting hole/punches distance (length)
- 440 mm
- n - Mounting hole distance (width)
- 290 mm
- N - Mounting hole diameter
- 19 mm
- F - Labyrinth overhang
- 5 mm
- W - Bearing distance
- 491,5 mm
- W1 - Central shaft length
- 457,5 mm
- A1
- 80 mm
- D - Bearing seat diameter
- 180 mm
- Oil level
- 36 - 41 mm
- Oil quantity
- 1,3 l
- Mass
- 80 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M10x30
- Recommended torque cover bolts
- 35 N-m
