Multiple bearing housings, that allow the usage of different bearing combinations.

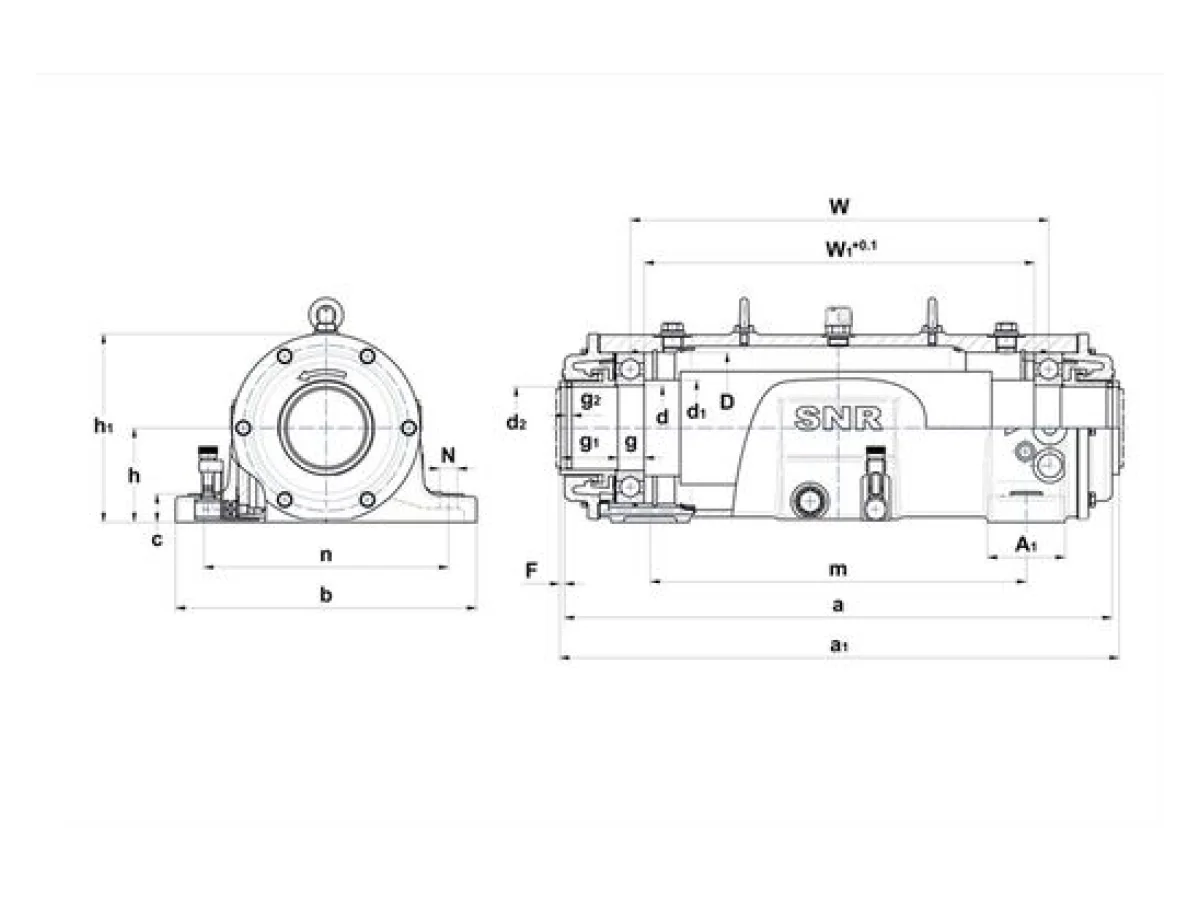

ZLOE 222/1 A specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 110 mm
- d1 - Shaft diameter between bearings
- 122 mm
- d2 - Shaft diameter outlet small
- 108 mm
- a - Housing length
- 688,5 mm
- a1 - Total length over lab
- 715,5 mm
- b - Housing foot width
- 400 mm
- c - Housing foot height
- 36 mm
- g - Shaft step 1 length
- 36 mm
- g1 - Shaft step 2 length
- 58 mm
- g2 - Shaft groove lab fixing
- 6 mm
- h - Bearing center height
- 125 mm
- h1 - Housing height
- 254 mm
- m - Mounting hole/punches distance (length)
- 480 mm
- n - Mounting hole distance (width)
- 320 mm
- N - Mounting hole diameter
- 24 mm
- F - Labyrinth overhang
- 12 mm
- W - Bearing distance
- 536,5 mm
- W1 - Central shaft length
- 498,5 mm
- A1
- 90 mm
- D - Bearing seat diameter
- 200 mm
- Oil level
- 40 - 45 mm
- Oil quantity
- 1,7 l
- Mass
- 85 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M20
- Recommended torque fixing bolts
- 290 N-m
- Cover bolts
- M10x25
- Recommended torque cover bolts
- 35 N-m
