Multiple bearing housings, that allow the usage of different bearing combinations.

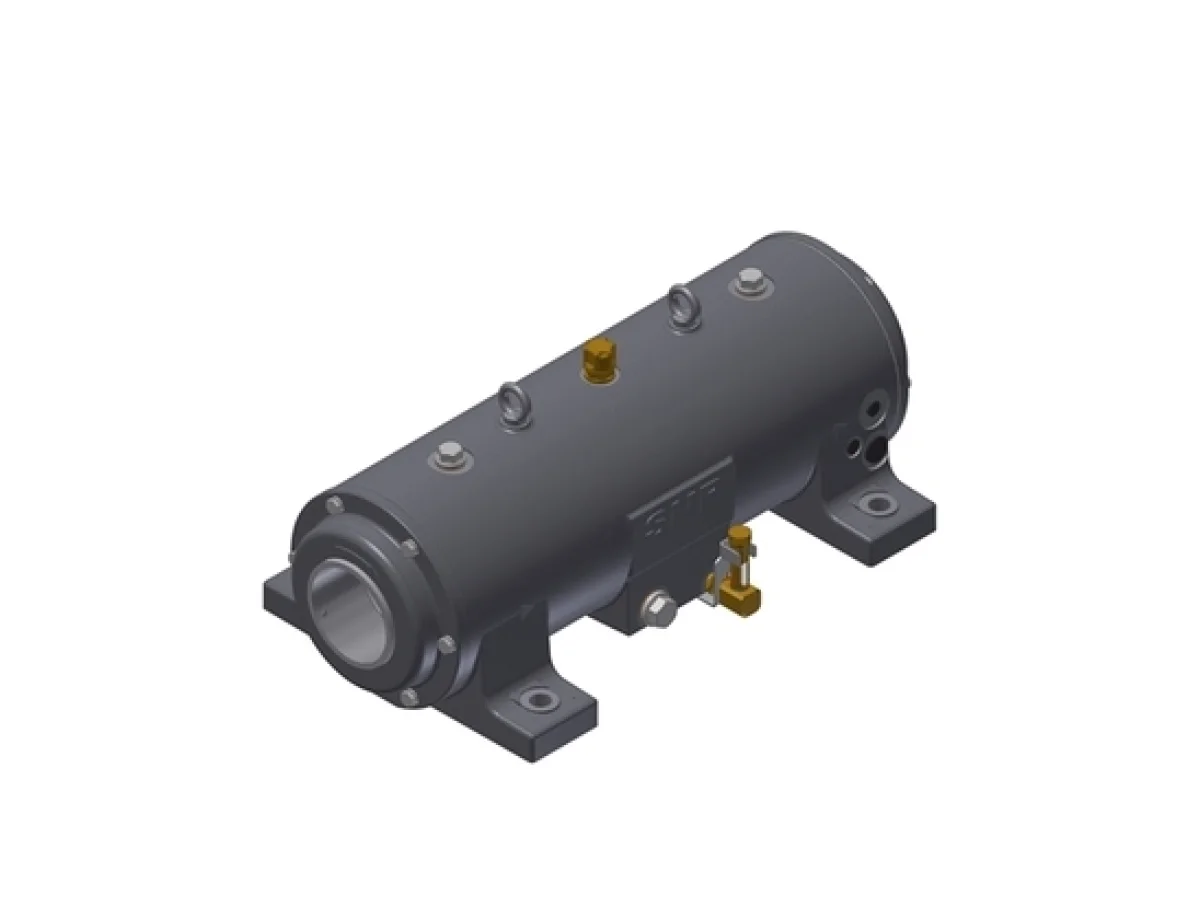

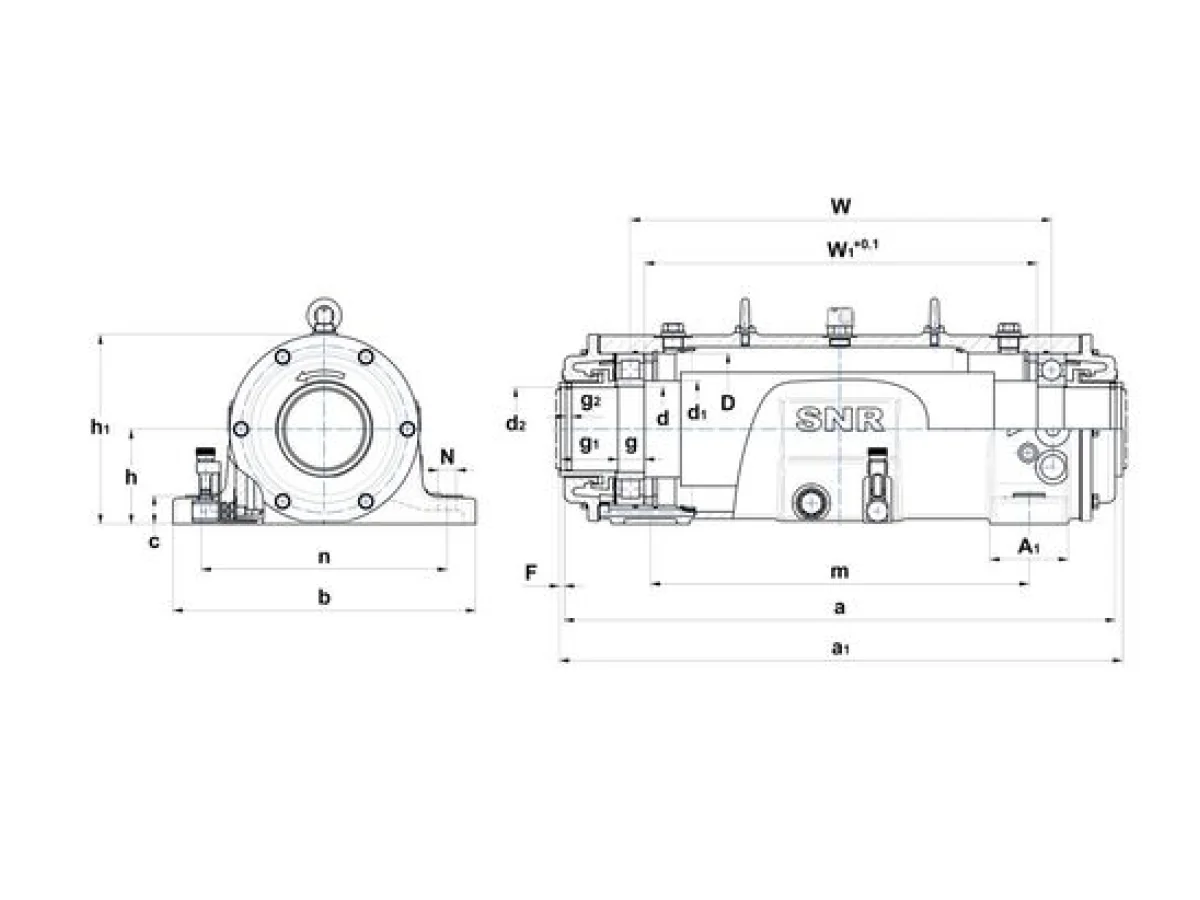

ZLOE 315/1 B specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 75 mm
- d1 - Shaft diameter between bearings
- 90 mm
- d2 - Shaft diameter outlet small
- 72 mm
- a - Housing length
- 582,5 mm
- a1 - Total length over lab
- 595 mm
- b - Housing foot width
- 320 mm
- c - Housing foot height
- 30 mm
- g - Shaft step 1 length
- 35 mm
- g1 - Shaft step 2 length
- 49,5 mm
- g2 - Shaft groove lab fixing
- 6 mm
- h - Bearing center height
- 100 mm
- h1 - Housing height
- 200 mm
- m - Mounting hole/punches distance (length)
- 400 mm
- n - Mounting hole distance (width)
- 260 mm
- N - Mounting hole diameter
- 19 mm
- F - Labyrinth overhang
- 5 mm
- W - Bearing distance
- 445 mm
- W1 - Central shaft length
- 408 mm
- A1
- 80 mm
- D - Bearing seat diameter
- 160 mm
- Oil level
- 34,5 - 37,5 mm
- Oil quantity
- 0,8 l
- Mass
- 75 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M8x30
- Recommended torque cover bolts
- 17 N-m
