ITEM NUMBER
A-AR206-103D1

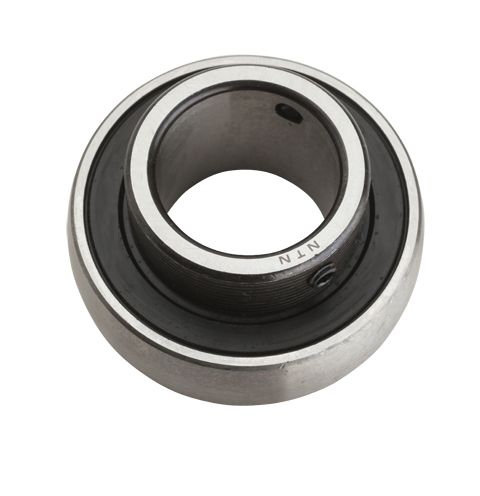

Ultra Class Bearing Insert w/ Set Screw, Narrow Inner Ring - Spherical O.D.
d30,163 mmBore
D61,999 mmOutside diameter
B30,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for A-AR206-103D1
Units
Technical Specifications
- Type
- Insert Bearing
- Bore Type
- Round
- Bearing Type
- Ball Bearing
- Material
- Black Oxide
- Ball Material
- Steel
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Precision Rating
- ISO Class 0
- Performance
- Standard Duty
- Locking Device
- Set Screw
- Lubrication
- Relubricatable
- Basic Outer Ring
- 206
- Static Load Rating
- 11300 N 2540 lbf
- Dynamic Load Rating
- 19800 N 4400 lbf
- Enclosure
- Double Sealed
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- d
- 30.163 mm 1.1875 in
- D
- 61.999 mm 2.4409 in
- C
- 18.001 mm 0.7087 in
- B
- 30.000 mm 1.1811 in
- r
- 0.991 mm 0.0390 in
- ds
- 1/4-28 UNF
- G
- 5.004 mm 0.1970 in
- S1
- 21.006 mm 0.8270 in
- S
- 8.992 mm 0.3540 in
- F
- 4.100 mm 0.1614 in
