Bearing-Insert-Set-Screw-Wide-Inner-Ring-Spherical-OD – A-UC206-103D1-LP09M

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

A-UC206-103D1-LP09M

Bearing Insert w/ Set Screw, Wide Inner Ring - Spherical O.D.

d30,163 mmBore

D62,000 mmOutside diameter

B38,100 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for A-UC206-103D1-LP09M

Units

Technical Specifications

Type: Insert Bearing
Bore Type: Round
Bearing Type: Ball Bearing
Material: Through Hardened Steel
Ball Material: Steel
Limiting Speed - Grease: 4850 RPM
Seal Type: Contact
Seal Material: Nitrile Rubber
Precision Rating: ISO Class 0
Performance: Standard Duty
Locking Device: Set Screw
Lubrication: Relubricatable
Basic Outer Ring: 206
Static Load Rating: 11300 N
Dynamic Load Rating: 21600 N
Enclosure: Double Sealed
Weight: 0.320 kg
Operating Temperature Range: -40 to 120 ºC

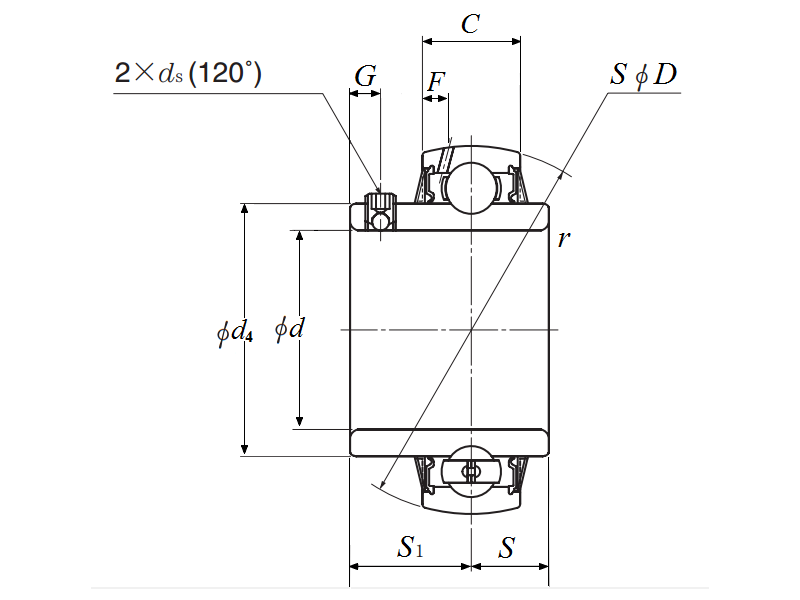

Dimensional Specifications

d: 30.163 mm
D: 62.000 mm
C: 19.000 mm
B: 38.100 mm
r: 1.000 mm
ds: 1/4-28 UNF
G: 5.000 mm
d4: 40.800 mm
S1: 22.200 mm
S: 15.900 mm
