ITEM NUMBER
M1012EAHL
Outer Ring w/ Cage & Rollers, Two Ribs & Blind Dowel Hole in Outer Ring O.D.
d—Bore
D95,044 mmOutside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for M1012EAHL
Units
Technical Specifications
- Type
- Outer Ring w/ Rollers
- Bore Type
- Round
- Material
- Hardened Alloy Steel
- Cage Material
- Composite Steel
- Configuration
- One
- Tolerance
- ISO Class 0 (RBEC 1)
- Oil Hole
- w/o Oil Hole
- Radial Internal Clearance
- CN
- Static Load Rating
- 75000 N 16861 lbf
- Dynamic Load Rating
- 55500 N 12477 lbf
- Enclosure
- Open
- Weight
- 0.340 kg 0.743 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

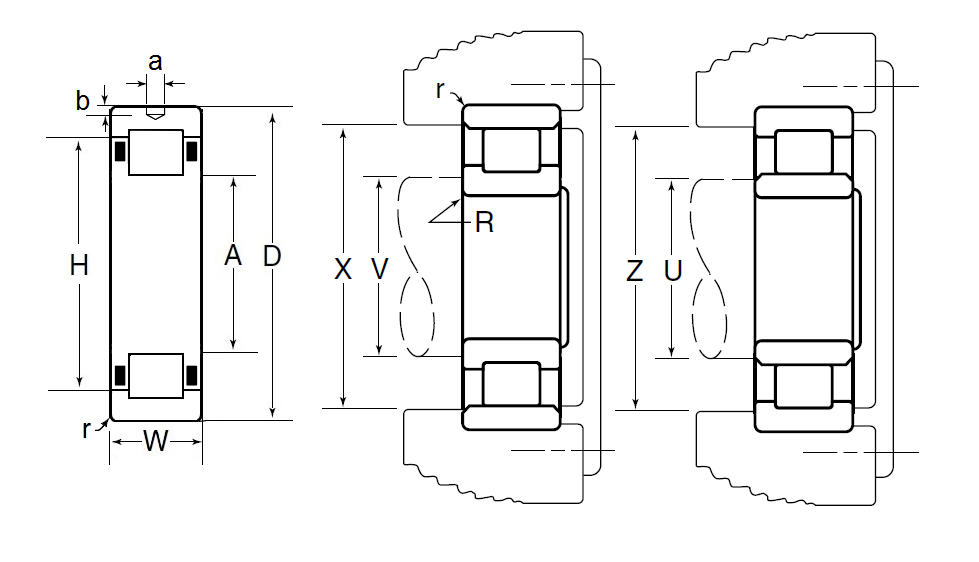

Dimensional Specifications
- A
- 69.490 mm 2.7360 in
- D
- 95.044 mm 3.7419 in
- W
- 18.000 mm 0.7087 in
- r
- 1.020 mm 0.0400 in
- H
- 82.350 mm 3.2421 in
- a
- 7.140 mm 0.2811 in
- b
- 2.030 mm 0.0799 in
- U (Plain Rings)
- 67.100 mm 2.6417 in
- V (Rib Rings)
- 69.300 mm 2.7283 in
- X (Plain Rings)
- 88.600 mm 3.4882 in
- Z (Rib Rings)
- 85.300 mm 3.3583 in
