ITEM NUMBER
SUCNFL208-24
Two Bolt Rhombus Flanged Unit, Thermoplastic Housing, Set Screw, SUCNFL Type
d38,100 mmBore
D—Outside diameter
B49,200 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for SUCNFL208-24
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Silicone
- Bearing Number
- SUC208-24
- Housing Number
- WNFL208
- Insert Material
- Stainless Steel
- Housing Material
- Thermoplastic
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Normal Duty
- Dynamic Load Rating
- 22800 N 5126 lbf
- Static Load Rating
- 18200 N 4092 lbf
- Rotational Speed [Max]
- 3300 RPM
- Weight
- 0.880 kg 1.940 lb
- Operating Temperature Range
- -20 to 120 ºC -4 to 250 ºF
- Lubrication
- Relubricatable

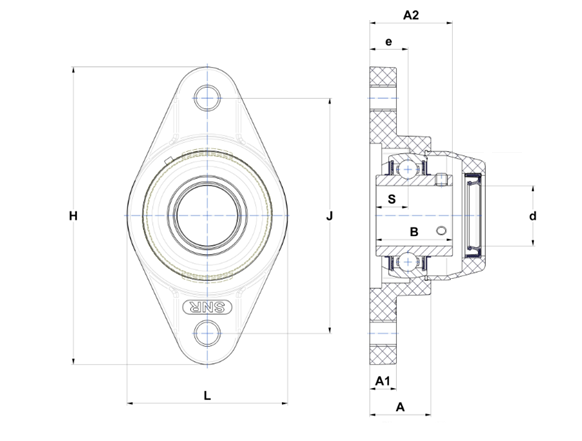

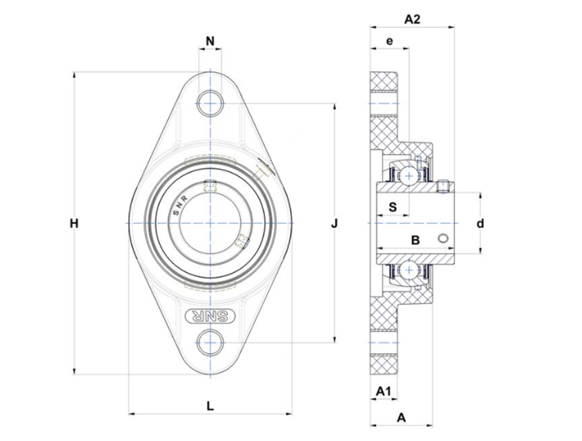

Dimensional Specifications
- d
- 38.100 mm 1.5000 in
- H
- 175.0 mm 6.8900 in
- L
- 100.0 mm 3.9400 in
- J
- 144.0 mm 5.6700 in
- A
- 37.5 mm 1.4800 in
- A1
- 20.0 mm 0.7900 in
- A2
- 51.700 mm 2.0400 in
- e
- 21.5 mm 0.8500 in
- N
- 14.0 mm 0.5500 in
- B
- 49.200 mm 1.9370 in
- S
- 19.000 mm 0.7480 in
