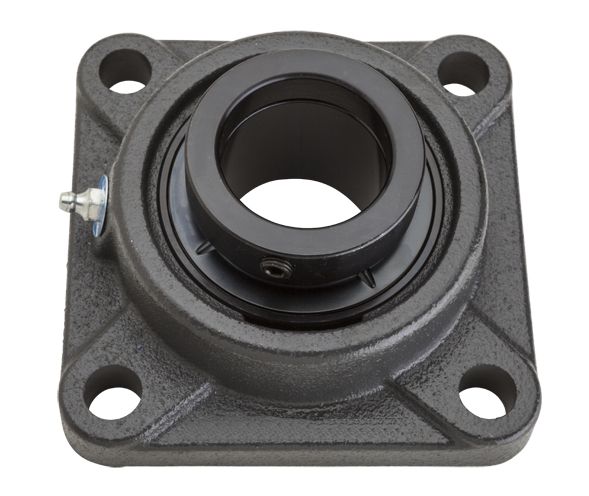

Ultra-Class Four Bolt Flanged Unit, Eccentric Lock, UELFU Type – UELFU-1-13-16

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNIndustrial bearing

ITEM NUMBER

UELFU-1-13-16

Ultra-Class Four Bolt Flanged Unit, Eccentric Lock, UELFU Type

d46,038 mmBore

D—Outside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for UELFU-1-13-16

Units

Technical Specifications

Type: 4-Bolt Square Flanged Unit
Bearing Type: Ball Bearing
Locking Device: Eccentric Locking Collar
Seal Type: Contact
Seal Material: Nitrile Rubber
Bearing Number: A-UEL210-113D1
Housing Number: FU210D1V50
Housing Material: Cast Iron
Housing Construction: 1 Piece
End Type: Open
Finish/Coating: Black Oxide
Performance: Light Duty
Dynamic Load Rating: 35000 N
Static Load Rating: 23200 N
Max Tightening Torque: 138 lb·in
Operating Temperature Range: -40 to 120 ºC
Lubrication: Relubricatable

Dimensional Specifications

d: 46.038 mm
L: 143.7 mm
J: 111.1 mm
A: 46.0 mm
A0: 66.300 mm
A1: 19.8 mm
A2: 28.2 mm
N: 17.1 mm
B1: 62.700 mm
S: 24.600 mm
F: 5.900 mm
